JA-Y001
Rigid Metal FabricA rigid woven-metal direction for controlled architectural panels where repeatable geometry, edge definition and frame coordination matter more than drape.
Selection logic
Choose the structure by the installed result—not by a catalogue image.
JA-Y001 combines round and flat elements into a precise woven rhythm. It should be detailed as a panel system: orientation, cut size, perimeter treatment, intermediate support, joints and finish must be resolved together.
The woven construction creates a defined rectangular field with a distinct face and direction. Unlike flexible drapery, the design intent depends on panel flatness, edge treatment and the interface with a frame or secondary structure.

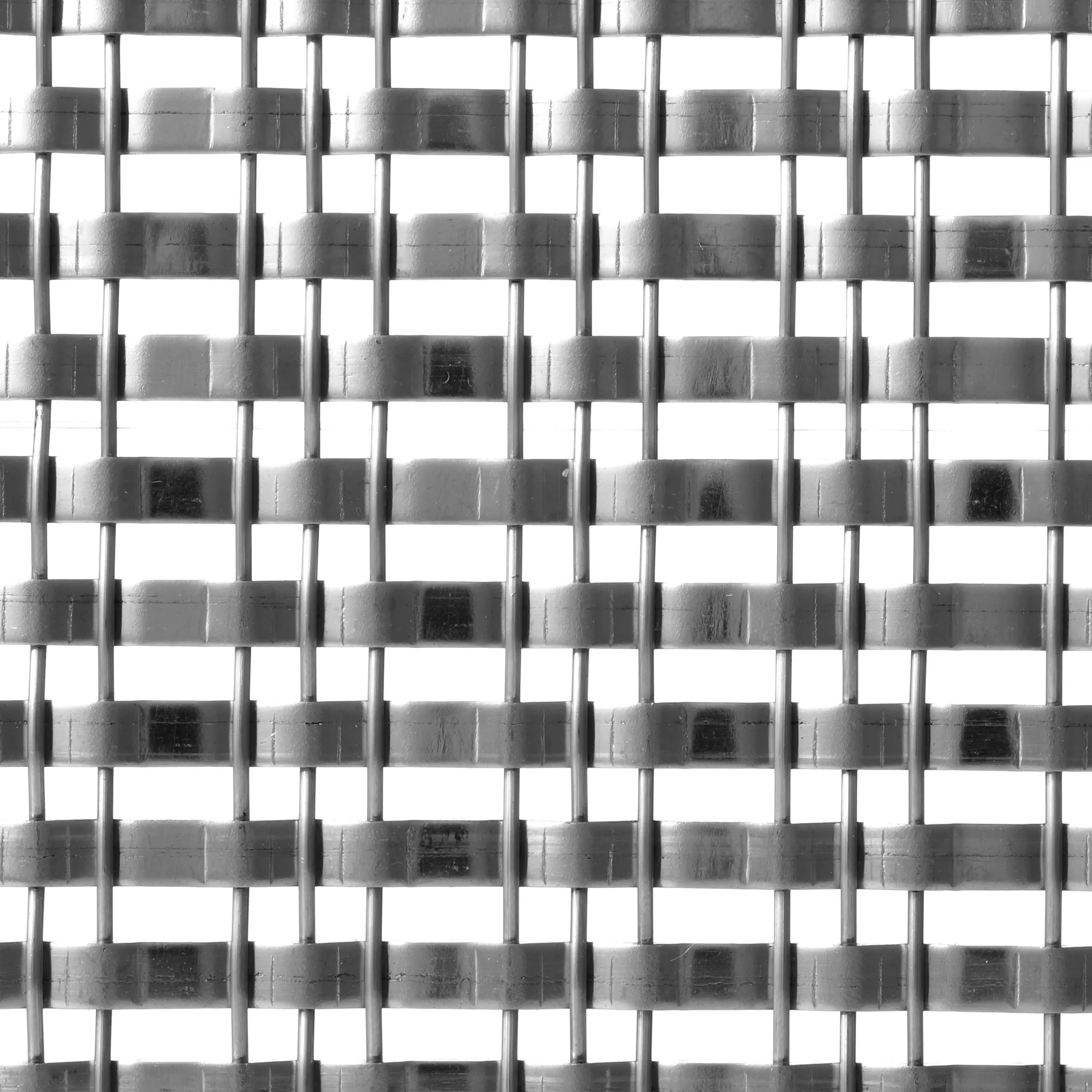

Approved visual references
Review the surface at full scale, close range and at the project interface
These images support product discussion. Colour, scale, edges and finish still require confirmation through the project sample and approved order record.
Buyer decision map
What must be resolved before this model becomes an order-ready project item
- 01
Panel module and joint rhythm
- 02
Face direction and visual orientation
- 03
Perimeter frame or edge trim
- 04
Flatness expectation and intermediate support
- 05
Cut-outs, corners and access panels
- 06
Finish reference and protection method
Value by buyer role
The same mesh must answer different project risks
Fabricator / Contractor
Resolve frame tolerance, fixing access, cut-outs, edge retention and installation sequence.
Procurement
Approve a complete panel sample or mock-up rather than only a loose mesh piece.
Reference specification
Enterprise technical-sheet values, kept separate from final project approval
These values identify the recorded reference configuration. They are not a substitute for the approved quotation, sample, drawing and order specification.
- Material
- Stainless steel reference configurationEnterprise sheet reference
- Reference cross-code
- TA-47-30Enterprise sheet reference
- Warp diameter
- 1 mm reference configurationEnterprise sheet reference
- Warp pitch
- 4 × 4 × 8 mm reference configurationEnterprise sheet reference
- Weft diameter
- 1 × 4 mm reference configurationEnterprise sheet reference
- Weft pitch
- 7 mm reference configurationEnterprise sheet reference
- Open area
- 35% reference configurationEnterprise sheet reference
- Thickness
- 2 mm reference configurationEnterprise sheet reference
- Reference weight
- 5.7 kg/m²Enterprise sheet reference
- Maximum width
- 3000 mm reference; project review requiredEnterprise sheet reference
- Edge / finish / final size
- Project-specific confirmation requiredOpen project field
From inquiry to approval
Give our engineering team enough information to protect the design intent
01 / Drawing inputs
- 01
Panel schedule and module dimensions
- 02
Frame section and fixing detail
- 03
Pattern orientation and face direction
- 04
Joint, corner and cut-out details
- 05
Flatness and support requirements
- 06
Finish and protection requirements
02 / Sample checks
- 01
Pattern and orientation
- 02
Panel edge quality
- 03
Flatness in proposed frame
- 04
Joint alignment
- 05
Finish uniformity and packaging protection
03 / Controlled order release
After the model, configuration, finish, edges, dimensions and responsibilities are approved, the order record carries those requirements into production planning, inspection, packing and delivery coordination.
Project questions
What buyers usually need to confirm
Can JA-Y001 be ordered directly from the reference specification?
The listed values come from the enterprise technical sheet and describe a reference configuration. Final material, dimensions, finish, edges, interfaces and order scope must be confirmed against the current project.
What should be submitted for an engineering review?
Send dimensioned drawings, application, panel schedule, supporting construction, edge or fixing intent, finish requirement, site conditions and the required approval date.
Why is a physical sample still required?

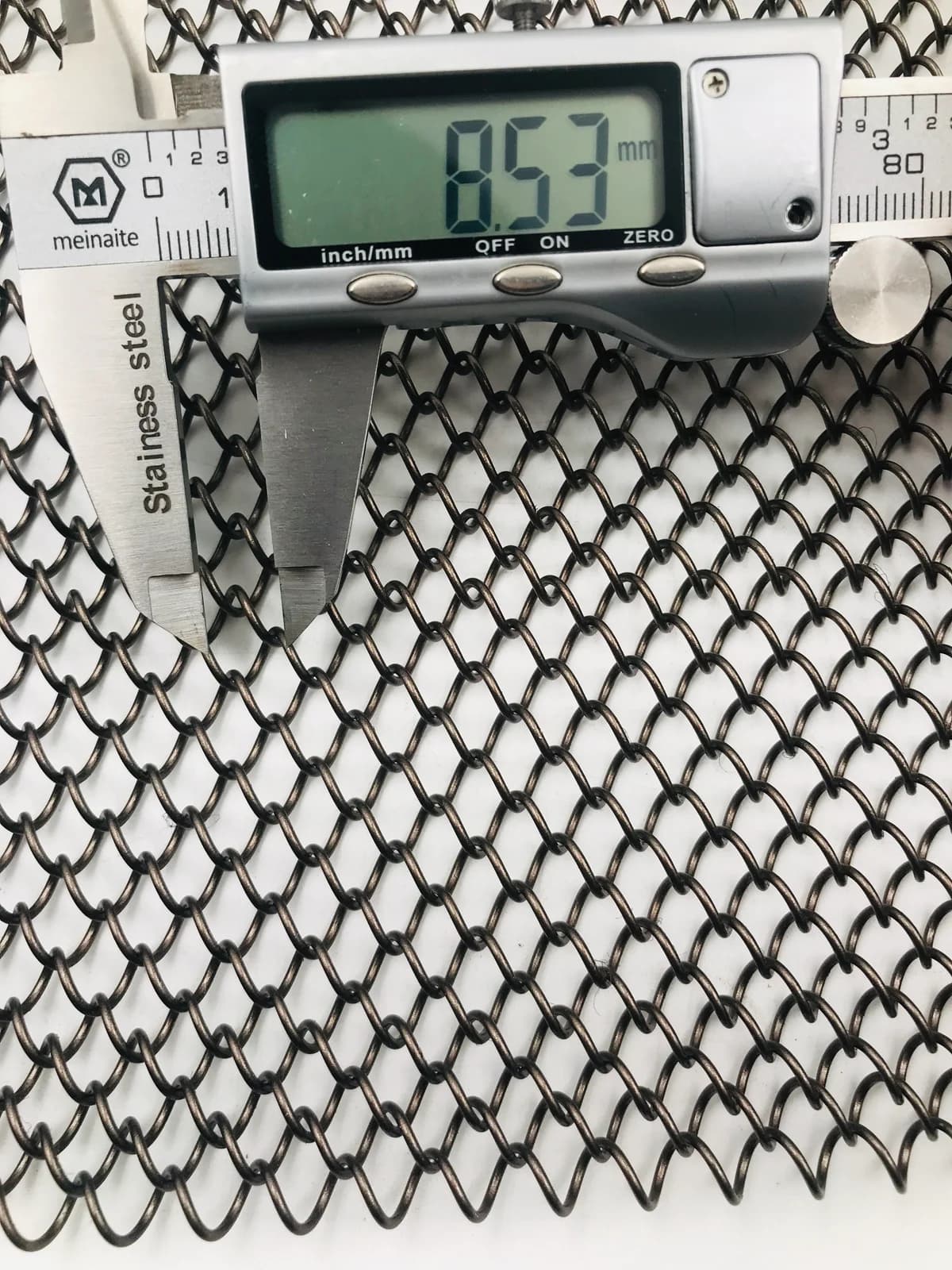

A sample confirms the actual weave, scale, colour, reflection, edge workmanship and handling expectation. For framed or tensioned work, a representative assembly or mock-up may be needed.
Start with evidence
Send the drawing, application and approval target.
We will review product fit, missing project inputs, sample requirements and the path to an order-ready specification.
