JA-F003
Flexible Rod FabricA denser cable-and-rod mesh direction for buyers who need stronger visual screening while retaining ventilation and a disciplined linear surface.
Selection logic
Choose the structure by the installed result—not by a catalogue image.
Compared with a more open flexible rod fabric, JA-F003 creates a denser reading. Selection should balance screening, weight, support, panel width and the visual rhythm expected at close and long viewing distances.
Multiple stainless-steel cable elements and closely spaced rods form a flexible but robust woven plane. Direction, restraint and edge construction affect handling, installation and the final visual alignment.
Approved visual references

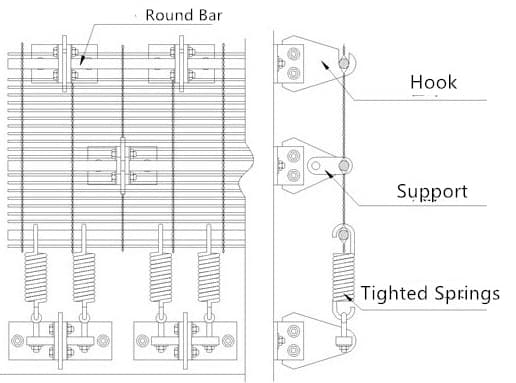

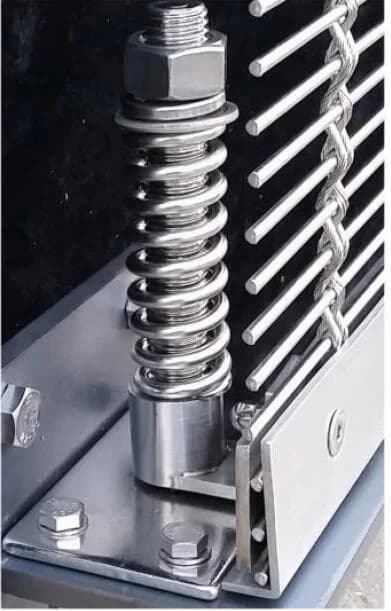

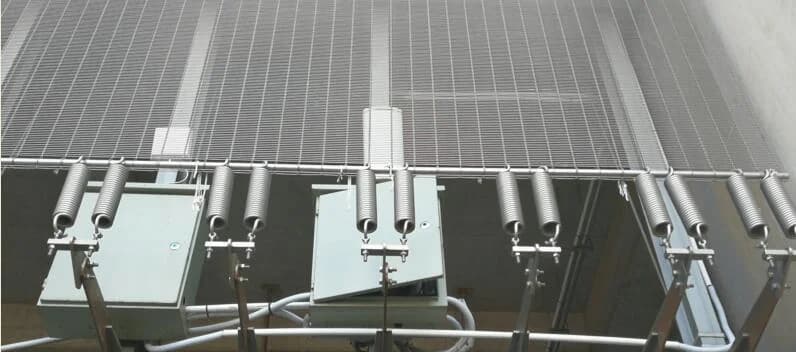

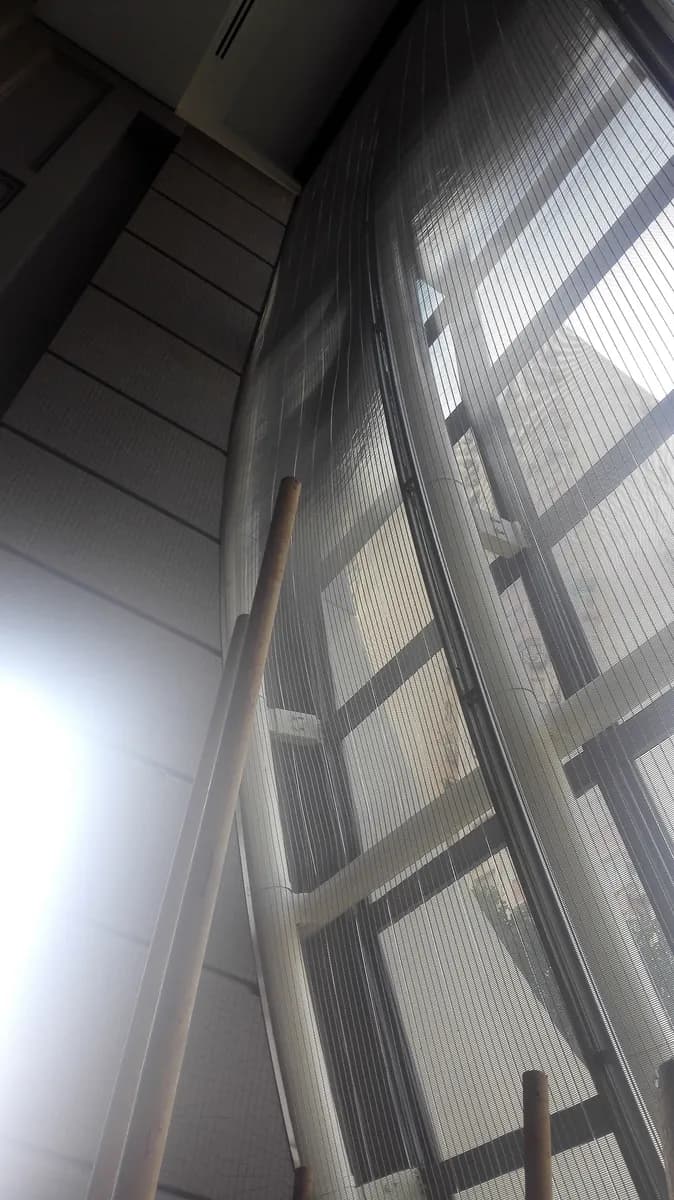

Review the surface at full scale, close range and at the project interface
These images support product discussion. Colour, scale, edges and finish still require confirmation through the project sample and approved order record.
Buyer decision map
What must be resolved before this model becomes an order-ready project item
- 01
Required screening versus open area
- 02
Panel weight and lifting method
- 03
Support and tension strategy
- 04
Rod direction and joint alignment
- 05
Edge construction and site tolerance
- 06
Maintenance access and cleaning
Value by buyer role
The same mesh must answer different project risks
Engineer / Contractor
Coordinate panel weight, load transfer, restraint, lifting and installation sequence.
Procurement
Keep the model, configuration, edge detail and approved sample linked to the same order reference.
Reference specification
Enterprise technical-sheet values, kept separate from final project approval
These values identify the recorded reference configuration. They are not a substitute for the approved quotation, sample, drawing and order specification.
- Material
- Stainless steel reference configurationEnterprise sheet reference
- Reference cross-code
- I2-22 in family workbook; historical folder also uses A-26 — confirm before quotationEnterprise sheet reference
- Cable diameter
- 2.0 × 4 mm reference configurationEnterprise sheet reference
- Cable pitch
- 50 mm reference configurationEnterprise sheet reference
- Rod diameter
- 3 mm reference configurationEnterprise sheet reference
- Rod pitch
- 6 mm reference configurationEnterprise sheet reference
- Open area
- 42% reference configurationEnterprise sheet reference
- Thickness
- 7 mm reference configurationEnterprise sheet reference
- Reference weight
- 11.3 kg/m²Enterprise sheet reference
- Maximum width
- 4000 mm reference; project review requiredEnterprise sheet reference
- Finish / final size
- Project-specific confirmation requiredOpen project field
From inquiry to approval
Give our engineering team enough information to protect the design intent
01 / Drawing inputs
- 01
Elevation, panel dimensions and orientation
- 02
Support locations and available fixing depth
- 03
Load or restraint criteria
- 04
Required joint and edge appearance
- 05
Site installation sequence
- 06
Finish and approval sample
02 / Sample checks
- 01
Perceived screening at target distance
- 02
Rod/cable alignment
- 03
Edge detail and stiffness
- 04
Weight and handling expectation
- 05
Finish and reflected light
03 / Controlled order release
After the model, configuration, finish, edges, dimensions and responsibilities are approved, the order record carries those requirements into production planning, inspection, packing and delivery coordination.
Project questions
What buyers usually need to confirm
Can JA-F003 be ordered directly from the reference specification?
The listed values come from the enterprise technical sheet and describe a reference configuration. Final material, dimensions, finish, edges, interfaces and order scope must be confirmed against the current project.
What should be submitted for an engineering review?
Send dimensioned drawings, application, panel schedule, supporting construction, edge or fixing intent, finish requirement, site conditions and the required approval date.
Why is a physical sample still required?
A sample confirms the actual weave, scale, colour, reflection, edge workmanship and handling expectation. For framed or tensioned work, a representative assembly or mock-up may be needed.
Start with evidence
Send the drawing, application and approval target.
We will review product fit, missing project inputs, sample requirements and the path to an order-ready specification.
